dex - A federated OpenID Connect provider

Dex is an identity service that uses OpenID Connect to drive authentication for other apps.

Dex acts as a portal to other identity providers through "connectors." This lets dex defer authentication to LDAP servers, SAML providers, or established identity providers like GitHub, Google, and Active Directory. Clients write their authentication logic once to talk to dex, then dex handles the protocols for a given backend.

ID Tokens

ID Tokens are an OAuth2 extension introduced by OpenID Connect and dex's primary feature. ID Tokens are JSON Web Tokens (JWTs) signed by dex and returned as part of the OAuth2 response that attests to the end user's identity. An example JWT might look like:

eyJhbGciOiJSUzI1NiIsImtpZCI6IjlkNDQ3NDFmNzczYjkzOGNmNjVkZDMyNjY4NWI4NjE4MGMzMjRkOTkifQ.eyJpc3MiOiJodHRwOi8vMTI3LjAuMC4xOjU1NTYvZGV4Iiwic3ViIjoiQ2djeU16UXlOelE1RWdabmFYUm9kV0kiLCJhdWQiOiJleGFtcGxlLWFwcCIsImV4cCI6MTQ5Mjg4MjA0MiwiaWF0IjoxNDkyNzk1NjQyLCJhdF9oYXNoIjoiYmk5NmdPWFpTaHZsV1l0YWw5RXFpdyIsImVtYWlsIjoiZXJpYy5jaGlhbmdAY29yZW9zLmNvbSIsImVtYWlsX3ZlcmlmaWVkIjp0cnVlLCJncm91cHMiOlsiYWRtaW5zIiwiZGV2ZWxvcGVycyJdLCJuYW1lIjoiRXJpYyBDaGlhbmcifQ.OhROPq_0eP-zsQRjg87KZ4wGkjiQGnTi5QuG877AdJDb3R2ZCOk2Vkf5SdP8cPyb3VMqL32G4hLDayniiv8f1_ZXAde0sKrayfQ10XAXFgZl_P1yilkLdknxn6nbhDRVllpWcB12ki9vmAxklAr0B1C4kr5nI3-BZLrFcUR5sQbxwJj4oW1OuG6jJCNGHXGNTBTNEaM28eD-9nhfBeuBTzzO7BKwPsojjj4C9ogU4JQhGvm_l4yfVi0boSx8c0FX3JsiB0yLa1ZdJVWVl9m90XmbWRSD85pNDQHcWZP9hR6CMgbvGkZsgjG32qeRwUL_eNkNowSBNWLrGNPoON1gMg

ID Tokens contains standard claims assert which client app logged the user in, when the token expires, and the identity of the user.

{
  "iss": "http://127.0.0.1:5556/dex",
  "sub": "CgcyMzQyNzQ5EgZnaXRodWI",
  "aud": "example-app",
  "exp": 1492882042,
  "iat": 1492795642,
  "at_hash": "bi96gOXZShvlWYtal9Eqiw",
  "email": "jane.doe@coreos.com",
  "email_verified": true,
  "groups": [
    "admins",
    "developers"
  ],
  "name": "Jane Doe"
}

Because these tokens are signed by dex and contain standard-based claims other services can consume them as service-to-service credentials. Systems that can already consume OpenID Connect ID Tokens issued by dex include:

• Kubernetes
• AWS STS

For details on how to request or validate an ID Token, see "Writing apps that use dex".

Kubernetes and Dex

Dex runs natively on top of any Kubernetes cluster using Custom Resource Definitions and can drive API server authentication through the OpenID Connect plugin. Clients, such as the kubernetes-dashboard and kubectl, can act on behalf of users who can login to the cluster through any identity provider dex supports.

• More docs for running dex as a Kubernetes authenticator can be found here.
• You can find more about companies and projects which use dex, here.

Connectors

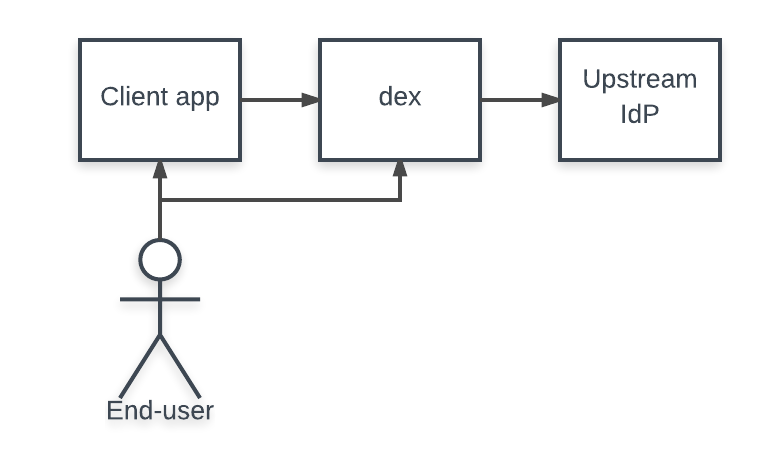

When a user logs in through dex, the user's identity is usually stored in another user-management system: a LDAP directory, a GitHub org, etc. Dex acts as a shim between a client app and the upstream identity provider. The client only needs to understand OpenID Connect to query dex, while dex implements an array of protocols for querying other user-management systems.

A "connector" is a strategy used by dex for authenticating a user against another identity provider. Dex implements connectors that target specific platforms such as GitHub, LinkedIn, and Microsoft as well as established protocols like LDAP and SAML.

Depending on the connectors limitations in protocols can prevent dex from issuing refresh tokens or returning group membership claims. For example, because SAML doesn't provide a non-interactive way to refresh assertions, if a user logs in through the SAML connector dex won't issue a refresh token to its client. Refresh token support is required for clients that require offline access, such as kubectl.

Dex implements the following connectors:

Name	supports refresh tokens	supports groups claim	supports preferred_username claim	status	notes
LDAP	yes	yes	yes	stable
GitHub	yes	yes	yes	stable
SAML 2.0	no	yes	no	stable	WARNING: Unmaintained and likely vulnerable to auth bypasses (#1884)
GitLab	yes	yes	yes	beta
OpenID Connect	yes	yes	yes	beta	Includes Salesforce, Azure, etc.
OAuth 2.0	no	yes	yes	alpha
Google	yes	yes	yes	alpha
LinkedIn	yes	no	no	beta
Microsoft	yes	yes	no	beta
AuthProxy	no	yes	no	alpha	Authentication proxies such as Apache2 mod_auth, etc.
Bitbucket Cloud	yes	yes	no	alpha
OpenShift	yes	yes	no	alpha
Atlassian Crowd	yes	yes	yes *	beta	preferred_username claim must be configured through config
Gitea	yes	no	yes	beta
OpenStack Keystone	yes	yes	no	alpha

Stable, beta, and alpha are defined as:

• Stable: well tested, in active use, and will not change in backward incompatible ways.
• Beta: tested and unlikely to change in backward incompatible ways.
• Alpha: may be untested by core maintainers and is subject to change in backward incompatible ways.

All changes or deprecations of connector features will be announced in the release notes.

Documentation

• Getting started
• Intro to OpenID Connect
• Writing apps that use dex
• What's new in v2
• Custom scopes, claims, and client features
• Storage options
• gRPC API
• Using Kubernetes with dex
• Client libraries
  • Go

Reporting a vulnerability

Please see our security policy for details about reporting vulnerabilities.

Getting help

• For feature requests and bugs, file an issue.
• For general discussion about both using and developing Dex:
  • join the #dexidp on the CNCF Slack
  • open a new discussion
  • join the dex-dev mailing list

Development

When all coding and testing is done, please run the test suite:

make testall

For the best developer experience, install Nix and direnv.

Alternatively, install Go and Docker manually or using a package manager. Install the rest of the dependencies by running make deps.

For release process, please read the release documentation.

License

The project is licensed under the Apache License, Version 2.0.
